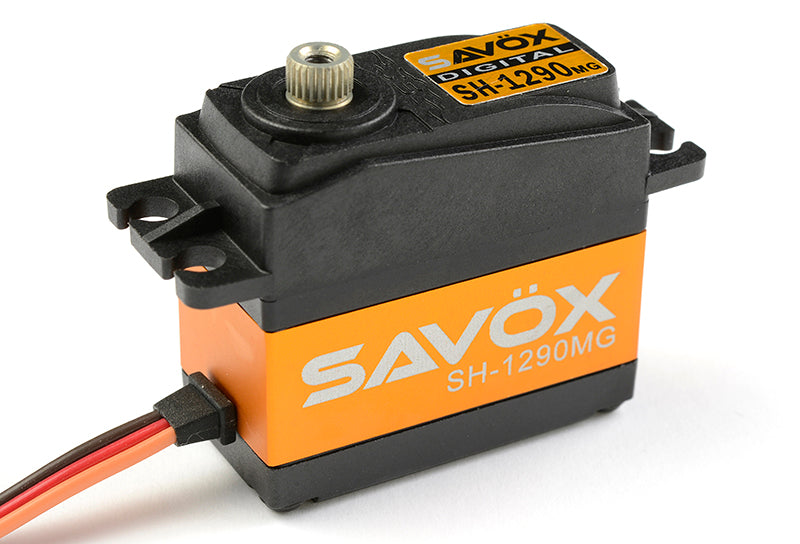

Savox - Servo - SH-1290MG - Digital - Coreless Motor - Metal Gear
Servo

Savox - Servo - SH-1290MG - Digital - Coreless Motor - Metal Gear

  • Vendor:Savox
  • Category: Savox, Savox, Servo
Availability: In Stock
R 1,199.00
Wishlist Compare

SH-1290MG
Savox - SH-1290MG Digital Coreless Motor Servo, Metal Gear

Features:
- Leading edge digital servo technology
- High efficiency Coreless motor
- Accurate and fast response
- Super high resolution
- Aluminium center case for improved motor cooling and total strength
- Ball beared
- Precision Metal gears

Technical specifications:
Servo Technology: Digital Low Voltage
Input Voltage (V): 4.8V - 6.0V
Servo Type / Size: Standard
Motor Type: Coreless Motor
Gear Material: Metal Gears
Ball Beared: Ball Beared
Servo Case: Aluminium - Composite
Speed 60°/Sec @ 6.0V: 0.048 Sec/60°
Torque kg/cm @ 6.0V: 5.0 Kg/cm
Length (mm): 40.3 mm
Width (mm): 20.2 mm
Height (mm): 37.2 mm
Weight (g): 56.4 g
Connector type: JR
Spline size: 25T Spline
